進口晶振
- 產品型號：12678502
- 晶振頻率：32.768KHz
- 晶振尺寸：2*6mm
- 產品應用： AKER安基晶振,CT26圓柱晶振,音叉晶體,CT26-32.768-12.5-20-X晶振,32.768KHz晶振,無源晶振,二腳插件晶振,進口晶振,頻率32.768KHz,負載12.5pF,頻率容差20ppm,工作溫度-40~85°C,小體積晶振,耐高溫晶振,無鉛環保晶振,藍牙...
-
CT26-32.768-12.5-20-X|32.768KHz|12.5pF|AKER品牌
CT26-32.768-12.5-20-X|32.768KHz|12.5pF|AKER品牌,AKER安基晶振,CT26圓柱晶振,音叉晶體,CT26-32.768-12.5-20-X晶振,32.768KHz晶振,無源晶振,二腳插件晶振,進口晶振,頻率32.768KHz,負載12.5pF,頻率容差20ppm,工作溫度-40~85°C,小體積晶振,耐高溫晶振,無鉛環保晶振,藍牙耳機晶振,攝像頭晶振,數字電表晶振,電話機晶振.
CT26-32.768-12.5-20-X|32.768KHz|12.5pF|AKER品牌特點：
-石英晶體音叉
-2.0 x 6.0 mm圓柱形包裝
-32.768KHz
-產品通用規格
-石英晶體音叉
-2.0 x 6.0 mm圓柱形包裝
-32.768KHz
-產品通用規格
CT26-32.768-12.5-20-X|32.768KHz|12.5pF|AKER品牌規格表
| Frequency Range | 32.768 | KHz | |
| Frequency Tolerance at 25°C | Standard | ±30 | PPM Max |
| Optional | ±10 | (Note 1) | |
| Aging | ±5 | PPM Max/Year | |
| Turnover Temperature | 25 ±5 | °C | |
| Temperature Coefficient | -0.035 Typ. PPM/℃² | ||
| Operating Temperature Range | Standard | -20 to +70 | |
| Extended | -40 to +85 | ||
| Storage Temperature Range | -55 to +125 | ||
| Equivalent Series Resistance(ESR) | 40 | K Ohm Max | |
| Load Capacitance | Standard | 12.5 | pF |
| Optional | 6 | ||
| Shunt Capacitance | 1.55 | pF Typ | |
| Motional Capacitance | 3 | fF Typ | |
| Drive Level | 1 | uW Max | |
| Insulation Resistance | 500 at 100 Vdc± 15Vdc | M Ohm | |
| Quality Factor | 50000 | Typ | |
| Ratio Of Capacitance | 500 | ||
.jpg)

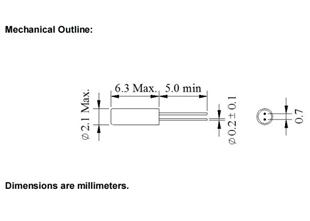

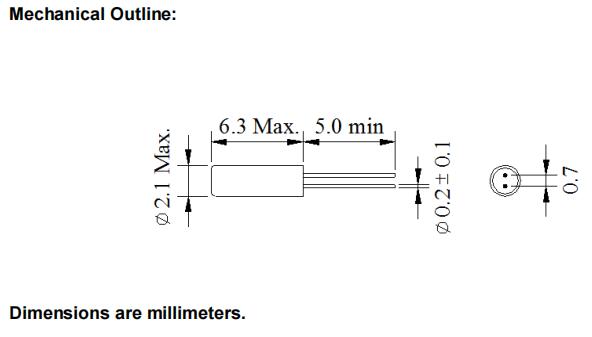

CT26-32.768-12.5-20-X|32.768KHz|12.5pF|AKER品牌尺寸圖
