- 產品型號：98785289
- 晶振頻率：26.000MHZ

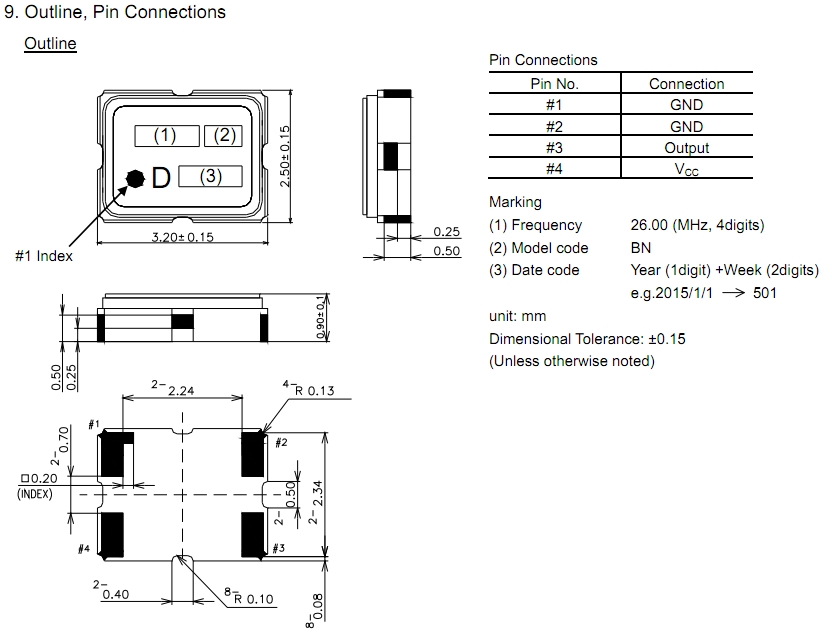

- 晶振尺寸：3.2*2.5*1.1mm
- 產品應用： 1XTW26000MAA,DSB321SDN,KDS溫補晶振1.DeviceNameTCXO2.ModelNameDSB321SDN3.NominalFrequency26.000MHz4.SPECNo.1XTW26000MAA5.Mass0.03gmax.6.AbsoluteMaximumRatingsItemSymbolRatingunit1SupplyVoltageVcc-0.3~+4...
-

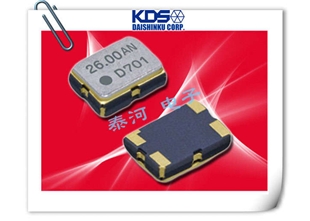

1XTW26000MAA,DSB321SDN,KDS溫補晶振
1XTW26000MAA,DSB321SDN,KDS溫補晶振,DAISHINKU CORP
1. Device Name TCXO
2. Model Name DSB321SDN
3. Nominal Frequency 26.000 MHz
4.SPEC No. 1XTW26000MAA
5. Mass 0.03g max.
6. Absolute Maximum Ratings.
7. Recommended Operating Conditions
8. Electrical Characteristic

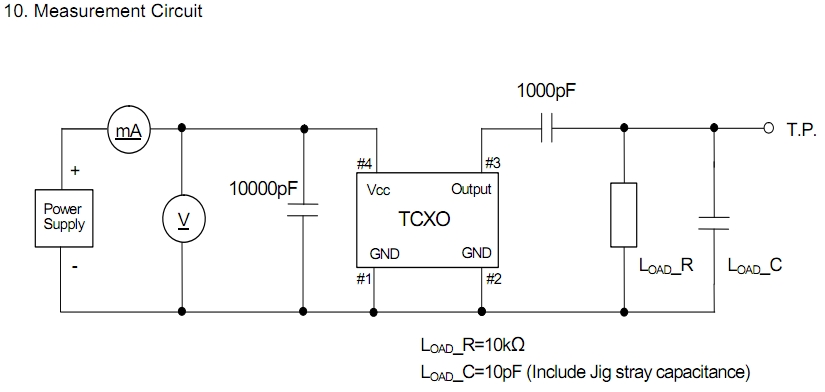

(TA=-30~+85°C, LOAD_R//C=10k?//10pF, VCC=+1.8V, unless otherwise noted)
Notes
1. Clipped sine wave (DC-coupled)
2. TA=+25°C
3. Please leave after reflow in 2h or more at room ambient.
2. Model Name DSB321SDN
3. Nominal Frequency 26.000 MHz
4.SPEC No. 1XTW26000MAA
5. Mass 0.03g max.
6. Absolute Maximum Ratings.
| Item | Symbol | Rating | unit | |
| 1 | Supply Voltage | Vcc | -0.3~+4.6 | v |
| 2 | Storage Temperature Range | T_STG | -40~+85 | C |
| Item | Symbol | min. | typ. | max. | unit | |
| 1 | Supply Voltage | Vcc | +1.7 | +1.8 | +1.9 | v |
| 2 |
Load lmpedance (resistance part) (parallel capacitance) |
LoAD_R | 9 | 10 | 11 | kΩ |
| LOAD_c | 9 | 10 | 11 | pf | ||
| 3 | Operating Temperature Range | T OPR | -30 | - | +85 | C |
(TA=-30~+85°C, LOAD_R//C=10k?//10pF, VCC=+1.8V, unless otherwise noted)
| Item | Conditions | Limits | unit | Notes | |||
| min. | typ | max. | |||||
| 1 | Current Consumption | - | - | +1.5 | mA | ||
| 2 | output Level | 0.8 | . | . | Vp-p | 1 | |
| 3 | Symmetry | GND level (DC cut) | 40/60 | - | 60/40 | % | |
| 4 | Harmonics | . | . | -5 | dbc | ||
| 5 |
Frequency Stability 1.Tolerance |
After 2 times reflow Ref. to nominal frequency |
- | - | ±1.5 | ppm | 2,3 |
| 2.vs temperature |
TA=-30~+85C Ref. to frequency(TA=+25C) |
. | . | ±0.5 | ppm | ||
| 3.vs Supply Voltage | Vcc=+1.8V±0.1V | . | - | ±0.2 | ppm | ||
| 4.vs Load Variation | LoAD_R//C=(10kΩ//10pF)±10% | - | - | ±0.2 | ppm | ||
| 5.vs Aging | TA=Room ambient | - | - | ±1.0 | ppm/year | ||
| 6 | Star Up Time | @90% of final Vout level | - | - | 2.0 | ms | |
| 7 | ssB Phase Noise | Relative to f0 level offset 1kHz | - | -130 | dBc/Hz |
1. Clipped sine wave (DC-coupled)
2. TA=+25°C
3. Please leave after reflow in 2h or more at room ambient.
1XTW26000MAA,DSB321SDN,KDS溫補晶振,DAISHINKU CORP
1XTW26000MAA,DSB321SDN,KDS溫補晶振,DAISHINKU CORP
1XTW26000MAA,DSB321SDN,KDS溫補晶振,DAISHINKU CORP
