如今的晶振產品已經頻頻出現在我們生活當中，常見過的產品就有手機/藍牙/耳機等，巨大的市場需求推動石英晶振產品的發展，同時也迎來了新的機遇，在這個偌大的市場中，電子產品對于晶振的意義非常重大，而在數字電路里，它卻像整個電路的心臟。而數字電路的所有工作都離不開時鐘，晶振電路設計的好壞，會影響到整個系統的穩定性。

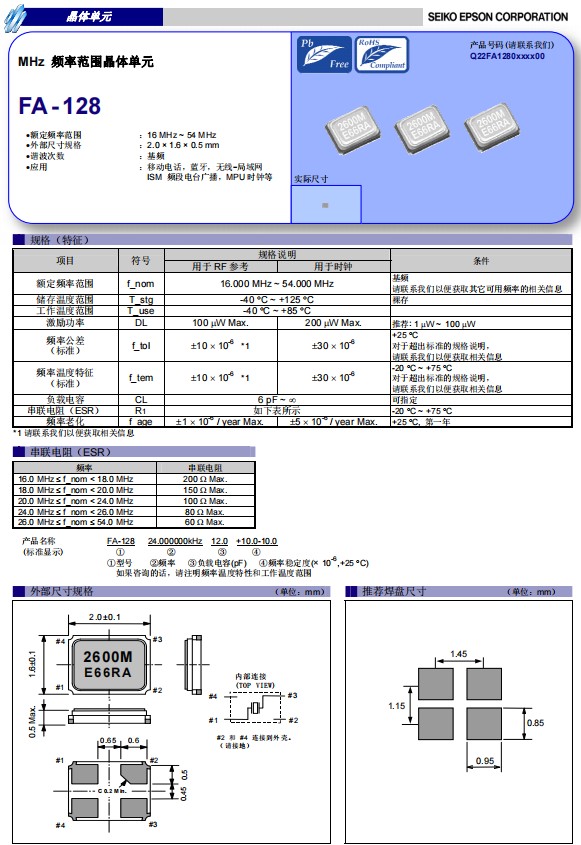

愛普生晶振FA-128是一款超小型尺寸2.0x1.6mm石英晶體諧振器，無源晶振，四腳貼片晶振，頻率范圍:16MHz至54MHz，具有超小型，輕薄型，穩定性好，耐熱及耐環境特點，該款FA-128小體積晶振可以在-40℃至+85℃的溫度內穩定工作，被廣泛應用于小型便捷式通信設備、攜帶設備，智能手機、無線藍牙，平板電腦、數碼相機、智能家居，平板電腦、計量?jī)x表、汽車電子、工業控制系統等。
超小型無源晶振Q22FA1280038600特別適用于智能手機應用,Q22FA1280040500,2016mm貼片晶振

愛普生晶振	尺寸	型號	頻率	負載電容	精度	頻率公差	工作溫度
Q22FA1280036800	2x1.6x0.5mm	FA-128	27.120000MHz	8pF	+/-15ppm	+/-15ppm	-20to+85°C
Q22FA1280036900	2x1.6x0.5mm	FA-128	30.000000MHz	10pF	+/-10ppm	+/-20ppm	-40to+85°C
Q22FA1280037200	2x1.6x0.5mm	FA-128	19.200000MHz	12pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280037600	2x1.6x0.5mm	FA-128	50.000000MHz	20pF	+/-30ppm	+/-50ppm	-40to+85°C
Q22FA1280038600	2x1.6x0.5mm	FA-128	26.000000MHz	19pF	+/-15ppm	+/-20ppm	-40to+85°C
Q22FA1280038700	2x1.6x0.5mm	FA-128	24.000000MHz	12pF	+/-10ppm	+/-20ppm	-40to+85°C
Q22FA1280038800	2x1.6x0.5mm	FA-128	25.000000MHz	16pF	+/-10ppm	+/-20ppm	-40to+85°C
Q22FA1280039300	2x1.6x0.5mm	FA-128	32.000000MHz	9pF	+/-10ppm	+/-20ppm	-40to+85°C
Q22FA1280039500	2x1.6x0.5mm	FA-128	25.000000MHz	8pF	+/-10ppm	+/-15ppm	-20to+75°C
Q22FA1280039600	2x1.6x0.5mm	FA-128	40.000000MHz	10pF	+/-10ppm	+/-10ppm	-30to+85°C
Q22FA1280039800	2x1.6x0.5mm	FA-128	24.000000MHz	8pF	+/-10ppm	+/-20ppm	-40to+85°C
Q22FA1280040000	2x1.6x0.5mm	FA-128	16.000000MHz	8pF	+/-10ppm	+/-20ppm	-40to+85°C
Q22FA1280040100	2x1.6x0.5mm	FA-128	32.000000MHz	9pF	+/-30ppm	+/-30ppm	-30to+80°C
Q22FA1280040500	2x1.6x0.5mm	FA-128	16.000000MHz	12pF	+/-30ppm	+/-30ppm	-20to+75°C
Q22FA1280041300	2x1.6x0.5mm	FA-128	27.000000MHz	20pF	+/-30ppm	+/-30ppm	-40to+85°C
Q22FA1280041600	2x1.6x0.5mm	FA-128	16.000000MHz	22pF	+/-30ppm	+/-30ppm	-30to+85°C
Q22FA1280041800	2x1.6x0.5mm	FA-128	52.000000MHz	8pF	+/-30ppm	+/-30ppm	-30to+85°C
Q22FA1280042000	2x1.6x0.5mm	FA-128	24.000000MHz	8pF	+/-30ppm	+/-30ppm	-20to+75°C
Q22FA1280042300	2x1.6x0.5mm	FA-128	16.000000MHz	8pF	+/-15ppm	+/-15ppm	-20to+75°C
Q22FA1280043600	2x1.6x0.5mm	FA-128	37.400000MHz	17pF	+/-10ppm	+/-10ppm	-30to+85°C
Q22FA1280043800	2x1.6x0.5mm	FA-128	32.000000MHz	6pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280044100	2x1.6x0.5mm	FA-128	20.000000MHz	8pF	+/-30ppm	+/-30ppm	-40to+85°C
Q22FA1280044200	2x1.6x0.5mm	FA-128	20.000000MHz	12.5pF	+/-20ppm	+/-10ppm	-20to+85°C
Q22FA1280045000	2x1.6x0.5mm	FA-128	25.000000MHz	6pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280045100	2x1.6x0.5mm	FA-128	25.000000MHz	6pF	+/-30ppm	+/-30ppm	-40to+85°C
Q22FA1280045200	2x1.6x0.5mm	FA-128	32.000000MHz	8pF	+/-10ppm	+/-22ppm	-40to+105°C
Q22FA1280045300	2x1.6x0.5mm	FA-128	32.000000MHz	8pF	+/-9ppm	+/-21ppm	-40to+105°C
Q22FA1280045400	2x1.6x0.5mm	FA-128	31.250000MHz	10pF	+/-50ppm	+/-30ppm	-40to+85°C
Q22FA1280045800	2x1.6x0.5mm	FA-128	16.000000MHz	16pF	+/-10ppm	+/-10ppm	-20to+70°C
Q22FA1280046100	2x1.6x0.5mm	FA-128	26.000000MHz	11pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280046300	2x1.6x0.5mm	FA-128	24.000000MHz	7pF	+/-10ppm	+/-15ppm	-40to+85°C
Q22FA1280046700	2x1.6x0.5mm	FA-128	24.000000MHz	8pF	+/-10ppm	+/-20ppm	-40to+85°C

Q22FA1280046800	2x1.6x0.5mm	FA-128	24.000000MHz	9pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280046900	2x1.6x0.5mm	FA-128	48.000000MHz	8pF	+/-10ppm	+/-20ppm	-20to+70°C
Q22FA1280047000	2x1.6x0.5mm	FA-128	26.000000MHz	12pF	+/-10ppm	+/-20ppm	-40to+85°C
Q22FA1280047100	2x1.6x0.5mm	FA-128	33.330000MHz	7pF	+/-30ppm	+/-30ppm	-20to+75°C
Q22FA1280047300	2x1.6x0.5mm	FA-128	25.000000MHz	6pF	+/-30ppm	+/-20ppm	-40to+85°C
Q22FA1280047600	2x1.6x0.5mm	FA-128	27.120000MHz	8pF	+/-15ppm	+/-20ppm	-40to+85°C
Q22FA1280047900	2x1.6x0.5mm	FA-128	48.000000MHz	8pF	+/-50ppm	+/-30ppm	-20to+75°C
Q22FA1280048000	2x1.6x0.5mm	FA-128	28.636300MHz	6pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280048400	2x1.6x0.5mm	FA-128	48.000000MHz	6pF	+/-10ppm	+/-20ppm	-20to+70°C
Q22FA1280048500	2x1.6x0.5mm	FA-128	25.000000MHz	20pF	+/-30ppm	+/-30ppm	-20to+85°C
Q22FA1280048700	2x1.6x0.5mm	FA-128	16.000000MHz	99pF	+/-30ppm	+/-30ppm	-20to+75°C
Q22FA1280048900	2x1.6x0.5mm	FA-128	24.000000MHz	12pF	+/-10ppm	+/-10ppm	-20to+85°C
Q22FA1280049500	2x1.6x0.5mm	FA-128	24.000000MHz	6pF	+/-10ppm	+/-50ppm	-40to+85°C
Q22FA1280049700	2x1.6x0.5mm	FA-128	52.000000MHz	6.7pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280049900	2x1.6x0.5mm	FA-128	24.000000MHz	10pF	+/-10ppm	+/-20ppm	-40to+85°C
Q22FA1280050200	2x1.6x0.5mm	FA-128	32.000000MHz	6pF	+/-20ppm	+/-30ppm	-40to+85°C
Q22FA1280050600	2x1.6x0.5mm	FA-128	38.400000MHz	12pF	+/-10ppm	+/-20ppm	-40to+85°C
Q22FA1280050700	2x1.6x0.5mm	FA-128	16.000000MHz	9pF	+/-10ppm	+/-15ppm	-30to+85°C
Q22FA1280051300	2x1.6x0.5mm	FA-128	16.000000MHz	10pF	+/-30ppm	+/-30ppm	-40to+85°C
Q22FA1280051400	2x1.6x0.5mm	FA-128	32.000000MHz	12pF	+/-10ppm	+/-20ppm	-40to+85°C
Q22FA1280051700	2x1.6x0.5mm	FA-128	32.000000MHz	6pF	+/-10ppm	+/-20ppm	-40to+85°C
Q22FA1280051900	2x1.6x0.5mm	FA-128	52.000000MHz	8pF	+/-10ppm	+/-12ppm	-30to+85°C
Q22FA1280052600	2x1.6x0.5mm	FA-128	24.000000MHz	8.5pF	+/-9ppm	+/-9ppm	-10to+70°C
Q22FA1280052900	2x1.6x0.5mm	FA-128	16.000000MHz	6pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280053000	2x1.6x0.5mm	FA-128	32.000000MHz	10pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280053100	2x1.6x0.5mm	FA-128	50.000000MHz	10pF	+/-15ppm	+/-15ppm	-40to+85°C
Q22FA1280053300	2x1.6x0.5mm	FA-128	24.576000MHz	20pF	+/-15ppm	+/-15ppm	-40to+85°C
Q22FA1280054100	2x1.6x0.5mm	FA-128	20.000000MHz	15pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280054800	2x1.6x0.5mm	FA-128	26.000000MHz	12pF	+/-15ppm	+/-30ppm	-40to+105°C
Q22FA1280055100	2x1.6x0.5mm	FA-128	27.120000MHz	6pF	+/-30ppm	+/-30ppm	-40to+105°C
Q22FA1280055200	2x1.6x0.5mm	FA-128	19.200000MHz	12pF	+/-30ppm	+/-30ppm	-20to+75°C
Q22FA1280055900	2x1.6x0.5mm	FA-128	25.000000MHz	10pF	+/-30ppm	+/-30ppm	-40to+85°C
Q22FA1280056000	2x1.6x0.5mm	FA-128	25.000000MHz	18pF	+/-30ppm	+/-30ppm	-40to+85°C
Q22FA1280056100	2x1.6x0.5mm	FA-128	24.000000MHz	12pF	+/-20ppm	+/-20ppm	-40to+85°C
Q22FA1280056700	2x1.6x0.5mm	FA-128	27.120000MHz	8pF	+/-15ppm	+/-15ppm	-40to+85°C
Q22FA1280056900	2x1.6x0.5mm	FA-128	25.000000MHz	8pF	+/-10ppm	+/-20ppm	-40to+85°C
Q22FA1280057000	2x1.6x0.5mm	FA-128	25.000000MHz	10pF	+/-10ppm	+/-20ppm	-40to+85°C
Q22FA1280057700	2x1.6x0.5mm	FA-128	48.000000MHz	7pF	+/-10ppm	+/-15ppm	-40to+85°C
Q22FA1280058100	2x1.6x0.5mm	FA-128	50.000000MHz	8pF	+/-30ppm	+/-50ppm	-40to+85°C
Q22FA1280058800	2x1.6x0.5mm	FA-128	24.000000MHz	8pF	+/-10ppm	+/-10ppm	-30to+85°C
Q22FA1280059400	2x1.6x0.5mm	FA-128	24.000000MHz	9pF	+/-10ppm	+/-15ppm	-40to+85°C
Q22FA1280059800	2x1.6x0.5mm	FA-128	40.000000MHz	12pF	+/-10ppm	+/-20ppm	-40to+85°C
Q22FA1280063700	2x1.6x0.5mm	FA-128	24.576000MHz	8pF	+/-10ppm	+/-20ppm	-40to+85°C
Q22FA1280064600	2x1.6x0.5mm	FA-128	38.400000MHz	8pF	+/-10ppm	+/-15ppm	-30to+85°C
Q22FA1280065200	2x1.6x0.5mm	FA-128	52.000000MHz	10pF	+/-25ppm	+/-25ppm	-40to+85°C
Q22FA1280065500	2x1.6x0.5mm	FA-128	40.000000MHz	10pF	+/-10ppm	+/-10ppm	-30to+85°C
Q22FA1280065600	2x1.6x0.5mm	FA-128	37.400000MHz	18pF	+/-10ppm	+/-20ppm	-40to+85°C
Q22FA1280065800	2x1.6x0.5mm	FA-128	31.948800MHz	8pF	+/-30ppm	+/-30ppm	-40to+85°C
Q22FA1280066200	2x1.6x0.5mm	FA-128	16.000000MHz	12pF	+/-10ppm	+/-20ppm	-40to+85°C
Q22FA1280066300	2x1.6x0.5mm	FA-128	27.000000MHz	8pF	+/-10ppm	+/-30ppm	-40to+85°C
Q22FA1280066900	2x1.6x0.5mm	FA-128	24.000000MHz	10pF	+/-15ppm	+/-20ppm	-40to+85°C
Q22FA1280068100	2x1.6x0.5mm	FA-128	27.000000MHz	7pF	+/-10ppm	+/-30ppm	-30to+85°C
Q22FA1280068800	2x1.6x0.5mm	FA-128	37.400000MHz	12pF	+/-10ppm	+/-18ppm	-40to+85°C
Q22FA1280069200	2x1.6x0.5mm	FA-128	24.000000MHz	18pF	+/-30ppm	+/-30ppm	-40to+85°C
Q22FA1280069300	2x1.6x0.5mm	FA-128	50.000000MHz	18pF	+/-20ppm	+/-50ppm	-40to+85°C
Q22FA1280069700	2x1.6x0.5mm	FA-128	40.000000MHz	8pF	+/-10ppm	+/-20ppm	-40to+85°C

超小型無源晶振Q22FA1280038600特別適用于智能手機應用,Q22FA1280040500,2016mm貼片晶振
2016mm體積的晶振，可以說是目前小型數碼產品的福音，目前超小型的智能手機里面所應用的就是小型的石英貼片晶振，該產品最適用于無線通訊系統，無線局域網，已實現低相位噪聲，低電壓，低消費電流和高穩定度，超小型，質量輕等產品特點，產品本身編帶包裝方式,可對應自動高速貼片機應用，以及高溫回流焊接（產品無鉛對應）為無鉛產品.
