愛普生是日本有名的頻率元件制造商,專業生產銷售石英晶振,石英晶體振蕩器,貼片晶振,晶體濾波器等.發展至今已是國際有名的晶體元件制造商,致力于為客戶提供高性能,高可靠,高品質晶振產品。

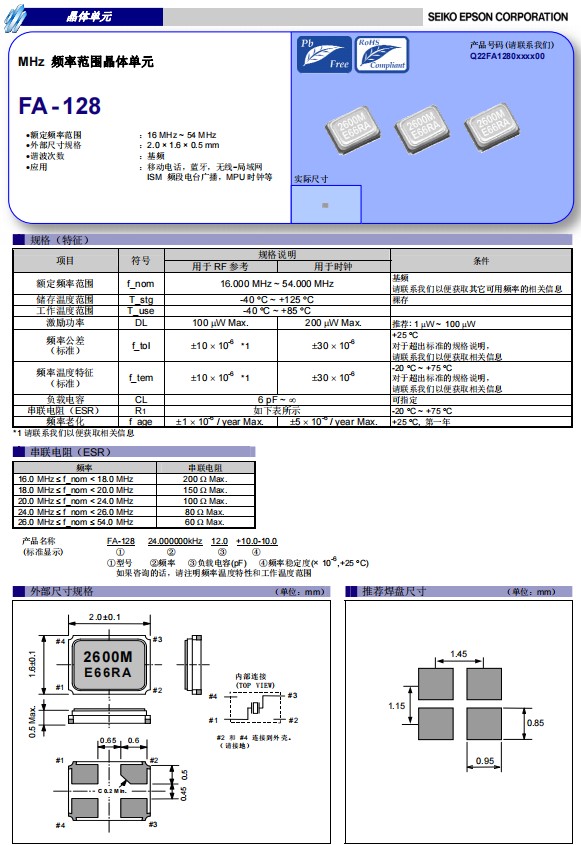

愛普生晶振FA-128是一款小體積晶振尺寸2.0x1.6mm無源晶振，石英晶體諧振器，四腳貼片晶振，頻率范圍:16MHz至54MHz，具有超小型，輕薄型，穩定性好，耐熱及耐環境特點，該款FA-128小體積晶振，可以在-40℃至+85℃(+105℃)的溫度內穩定工作，被廣泛應用于小型便捷式通信設備、手機、筆記本、數碼相機、平板電腦電表、水表、計量儀表、汽車電子、工業控制系統等。
超小型2016mm晶振Q22FA1280001800最適用于無線通訊系統,Q22FA1280011600,石英晶體諧振器

產品編碼	尺寸	型號	愛普生晶振	負載電容	精度	頻率公差	工作溫度
Q22FA1280000200	2x1.6x0.5mm	FA-128	48.000000MHz	12pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA1280000700	2x1.6x0.5mm	FA-128	38.400000MHz	10pF	+/-15ppm	+/-15ppm	-20to+85°C
Q22FA1280000800	2x1.6x0.5mm	FA-128	27.000000MHz	10pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA1280001000	2x1.6x0.5mm	FA-128	38.400000MHz	10pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280001100	2x1.6x0.5mm	FA-128	26.000000MHz	10pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280001300	2x1.6x0.5mm	FA-128	24.000000MHz	16pF	+/-30ppm	+/-30ppm	-25to+70°C
Q22FA1280001400	2x1.6x0.5mm	FA-128	24.000000MHz	16pF	+/-30ppm	+/-30ppm	-40to+85°C
Q22FA1280001800	2x1.6x0.5mm	FA-128	32.000000MHz	12pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280002000	2x1.6x0.5mm	FA-128	26.000000MHz	9pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280002100	2x1.6x0.5mm	FA-128	27.120000MHz	10pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280002200	2x1.6x0.5mm	FA-128	24.000000MHz	10pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280002400	2x1.6x0.5mm	FA-128	26.000000MHz	12pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280002500	2x1.6x0.5mm	FA-128	32.000000MHz	8pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280002600	2x1.6x0.5mm	FA-128	26.000000MHz	8pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280003000	2x1.6x0.5mm	FA-128	24.000000MHz	12pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA1280003100	2x1.6x0.5mm	FA-128	32.000000MHz	18pF	+/-30ppm	+/-30ppm	-20to+75°C
Q22FA1280003400	2x1.6x0.5mm	FA-128	27.120000MHz	8pF	+/-15ppm	+/-15ppm	-30to+70°C
Q22FA1280003500	2x1.6x0.5mm	FA-128	24.000000MHz	10pF	+/-30ppm	+/-30ppm	-20to+75°C
Q22FA1280003700	2x1.6x0.5mm	FA-128	24.000000MHz	12pF	+/-50ppm	+/-30ppm	-20to+75°C
Q22FA1280003800	2x1.6x0.5mm	FA-128	24.000000MHz	10pF	+/-50ppm	+/-30ppm	-20to+75°C
Q22FA1280004300	2x1.6x0.5mm	FA-128	32.000000MHz	8pF	+/-10ppm	+/-20ppm	-40to+85°C
Q22FA1280004400	2x1.6x0.5mm	FA-128	48.000000MHz	16pF	+/-15ppm	+/-18ppm	-40to+85°C
Q22FA1280004500	2x1.6x0.5mm	FA-128	38.400000MHz	8.5pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280004700	2x1.6x0.5mm	FA-128	26.000000MHz	12pF	+/-10ppm	+/-10ppm	-20to+85°C
Q22FA1280005300	2x1.6x0.5mm	FA-128	24.000000MHz	12pF	+/-10ppm	+/-10ppm	-20to+70°C
Q22FA1280005400	2x1.6x0.5mm	FA-128	24.000000MHz	8pF	+/-10ppm	+/-10ppm	-20to+70°C
Q22FA1280006100	2x1.6x0.5mm	FA-128	44.000000MHz	12pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280006200	2x1.6x0.5mm	FA-128	48.000000MHz	8pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA1280006400	2x1.6x0.5mm	FA-128	37.400000MHz	18pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280006700	2x1.6x0.5mm	FA-128	24.000000MHz	7pF	+/-30ppm	+/-30ppm	-20to+75°C

Q22FA1280007000	2x1.6x0.5mm	FA-128	27.000000MHz	7pF	+/-10ppm	+/-15ppm	-20to+70°C
Q22FA1280008500	2x1.6x0.5mm	FA-128	27.120000MHz	10pF	+/-30ppm	+/-30ppm	-20to+75°C
Q22FA1280008900	2x1.6x0.5mm	FA-128	48.000000MHz	8pF	+/-30ppm	+/-50ppm	-30to+85°C
Q22FA1280009000	2x1.6x0.5mm	FA-128	25.000000MHz	12pF	+/-10ppm	+/-20ppm	-40to+85°C
Q22FA1280009100	2x1.6x0.5mm	FA-128	27.120000MHz	7pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA1280009200	2x1.6x0.5mm	FA-128	32.000000MHz	10pF	+/-10ppm	+/-20ppm	-40to+85°C
Q22FA1280009400	2x1.6x0.5mm	FA-128	40.000000MHz	8pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280009900	2x1.6x0.5mm	FA-128	40.000000MHz	8pF	+/-10ppm	-11/+13ppm	-30to+85°C
Q22FA1280010000	2x1.6x0.5mm	FA-128	38.400000MHz	8pF	+/-10ppm	-11/+13ppm	-30to+85°C
Q22FA1280010100	2x1.6x0.5mm	FA-128	40.000000MHz	10pF	+/-10ppm	+/-20ppm	-40to+85°C
Q22FA1280010500	2x1.6x0.5mm	FA-128	25.000000MHz	12.5pF	+/-30ppm	+/-30ppm	-20to+75°C
Q22FA1280010700	2x1.6x0.5mm	FA-128	25.000000MHz	10pF	+/-50ppm	+/-30ppm	-20to+75°C
Q22FA1280010800	2x1.6x0.5mm	FA-128	25.000000MHz	12pF	+/-30ppm	+/-30ppm	-20to+75°C
Q22FA1280011200	2x1.6x0.5mm	FA-128	27.120000MHz	10pF	+/-15ppm	+/-15ppm	-20to+75°C
Q22FA1280011400	2x1.6x0.5mm	FA-128	24.000000MHz	9pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280011600	2x1.6x0.5mm	FA-128	32.000000MHz	12pF	+/-15ppm	+/-20ppm	-20to+70°C
Q22FA1280011900	2x1.6x0.5mm	FA-128	32.000000MHz	10pF	+/-20ppm	+/-20ppm	-20to+75°C
Q22FA1280012000	2x1.6x0.5mm	FA-128	24.000000MHz	8pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280012100	2x1.6x0.5mm	FA-128	27.000000MHz	15pF	+/-10ppm	+/-18ppm	-40to+85°C
Q22FA1280012500	2x1.6x0.5mm	FA-128	24.000000MHz	6pF	+/-30ppm	+/-30ppm	-20to+75°C
Q22FA1280012600	2x1.6x0.5mm	FA-128	25.000000MHz	8pF	+/-30ppm	+/-30ppm	-20to+75°C
Q22FA1280012700	2x1.6x0.5mm	FA-128	24.576000MHz	10pF	+/-30ppm	+/-20ppm	-20to+75°C
Q22FA1280012900	2x1.6x0.5mm	FA-128	27.120000MHz	12pF	+/-30ppm	+/-30ppm	-20to+75°C
Q22FA1280013100	2x1.6x0.5mm	FA-128	32.000000MHz	9pF	+/-10ppm	+/-9ppm	-20to+75°C
Q22FA1280013200	2x1.6x0.5mm	FA-128	26.000000MHz	15pF	+/-10ppm	+/-10ppm	-20to+70°C
Q22FA1280013500	2x1.6x0.5mm	FA-128	27.000000MHz	12pF	+/-10ppm	+/-18ppm	-40to+85°C
Q22FA1280013700	2x1.6x0.5mm	FA-128	32.000000MHz	9pF	+/-20ppm	+/-30ppm	-30to+85°C
Q22FA1280014000	2x1.6x0.5mm	FA-128	26.000000MHz	9pF	+/-10ppm	+/-20ppm	-40to+85°C
Q22FA1280014100	2x1.6x0.5mm	FA-128	20.000000MHz	10pF	+/-10ppm	+/-10ppm	-20to+70°C
Q22FA1280014300	2x1.6x0.5mm	FA-128	48.000000MHz	6pF	+/-50ppm	+/-30ppm	-30to+85°C
Q22FA1280014500	2x1.6x0.5mm	FA-128	24.000000MHz	6pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280014600	2x1.6x0.5mm	FA-128	24.000000MHz	7pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280014700	2x1.6x0.5mm	FA-128	38.400000MHz	8pF	+/-10ppm	+/-10ppm	-20to+75°C

超小型2016mm晶振Q22FA1280001800最適用于無線通訊系統,Q22FA1280011600,石英晶體諧振器

2016mm體積的晶振,可以說是目前小型數碼產品的福音,目前超小型的智能手機里面所應用的就是小型的石英貼片晶振,該產品最適用于無線通訊系統,無線局域網,已實現低相位噪聲,低電壓,低消費電流和高穩定度,超小型,質量輕等產品特點,產品本身編帶包裝方式,可對應自動高速貼片機應用,以及高溫回流焊接（產品無鉛對應）,為無鉛產品.
