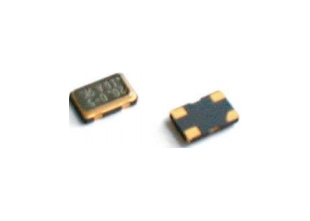

歐美晶振
- 產品型號：58255139
- 晶振頻率：25MHz
- 晶振尺寸：5.0*3.2*1.2mm
- 產品應用： Fortiming晶振,歐美進口晶振,XO53有源晶振,XO53-25M000-B25B3晶振,石英晶體振蕩器,四腳貼片晶振,5032mm晶振,頻率25MHz,電壓3.3V,頻率穩定性25ppm,工作溫度-40~85°C,高穩定性晶振,無鉛環保晶振,低老化晶振,電腦外圍設...
-
XO53-25M000-B25B3|25MHz|3.3V|Fortiming晶振
XO53-25M000-B25B3|25MHz|3.3V|Fortiming晶振,Fortiming晶振,歐美進口晶振,XO53有源晶振,XO53-25M000-B25B3晶振,石英晶體振蕩器,四腳貼片晶振,5032封裝晶振,頻率25MHz,電壓3.3V,頻率穩定性25ppm,工作溫度-40~85°C,高穩定性晶振,無鉛環保晶振,低老化晶振,電腦外圍設備晶振,監控攝像機晶振,無線接入點晶振,辦公自動化晶振.
XO53-25M000-B25B3|25MHz|3.3V|Fortiming晶振特點：
-符合RoHS標準(無鉛)，行業標準引腳間距
-極低相位抖動與基本或第三泛音晶體設計
-三狀態啟用/禁用標準;5V和3.3V可選
-無引線芯片載體(LCC)超小型封裝(5x3.2x1.0 mm)
-符合RoHS標準(無鉛)，行業標準引腳間距
-極低相位抖動與基本或第三泛音晶體設計
-三狀態啟用/禁用標準;5V和3.3V可選
-無引線芯片載體(LCC)超小型封裝(5x3.2x1.0 mm)

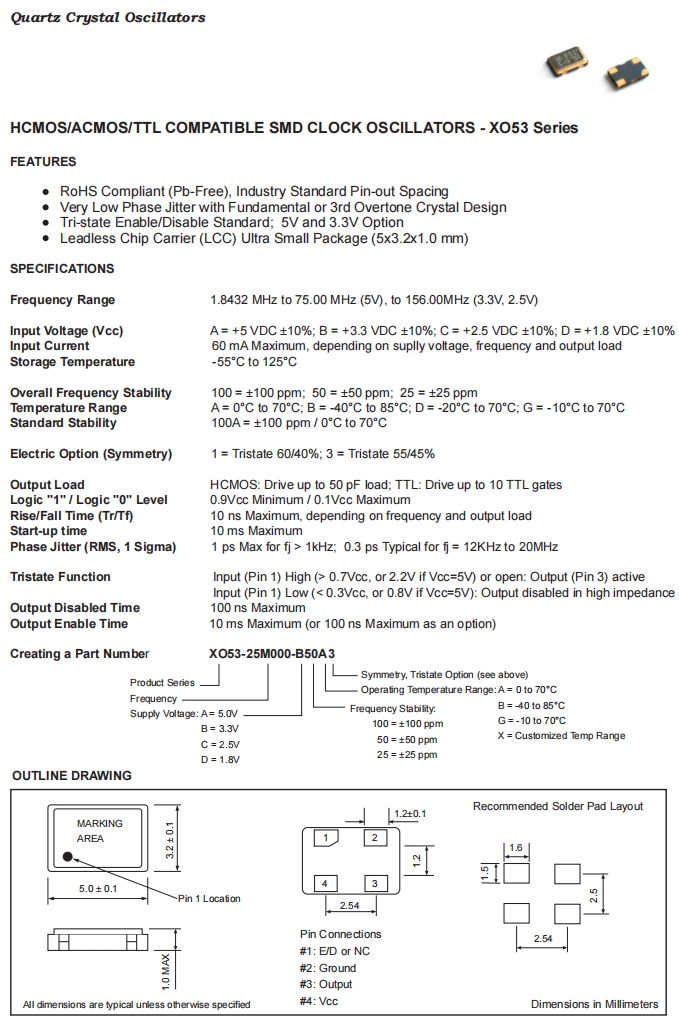

XO53-25M000-B25B3|25MHz|3.3V|Fortiming晶振規格表
| frequency | 25 MHz |
|
Input Voltage (Vcc)
|
+3.3 VDC ± 10%
|
|
Input Current
|
60 mA Maximum |
|
Storage Temperature
|
-55°C to 125°C
|
|
Overall Frequency Stability
|
100 = ±100 ppm; 50 = ±50 ppm; 25 = ±25 ppm
|
|
OperatingTemperature Range
|
A = 0°C to 70°C; B = -40°C to 85°C; D = -20°C to 70°C; G = -10°C to 70°C
|
|
Standard Stability
|
100A = ±100 ppm / 0°C to 70°C
|
|
Duty Cycle (at 50% Vp-p)
|
1 = No tristate 60/40%; 2 = No tristate 55/45%
|
|
Output Load
|
HCMOS: Drive up to 50 pF load; TTL: Drive up to 10 TTL gates
|
|
Logic "1" / Logic "0" Level
|
0.9Vcc Minimum / 0.1Vcc Maximum
|
|
Rise/Fall Time (Tr/Tf)
|
10 ns Maximum, depending on frequency and output load
|
|
Start-up time
|
10 ms Maximum
|
|
Phase Jitter
|
1 ps Max for fj > 1kHz; 0.3 ps Typical for fj = 12KHz to 20MHz
|
|
Aging
|
3 ppm First year; 1 ppm/year after first year
|
.jpg)

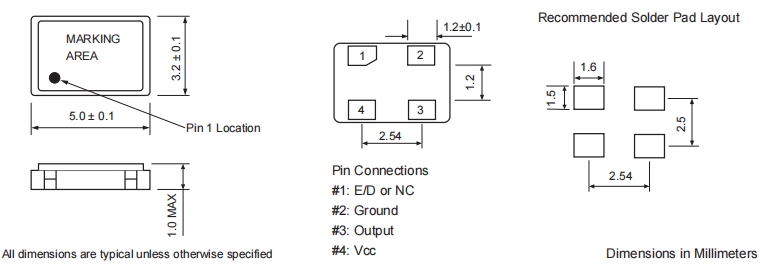

XO53-25M000-B25B3|25MHz|3.3V|Fortiming晶振尺寸圖
