- 產品型號：94094605
- 晶振頻率：32.768KHz
- 晶振尺寸：3*8mm
- 產品應用： Fortiming晶振,WXC38無源晶振,音叉晶體,WXC38-32K768-12.5晶振,石英晶體諧振器,圓柱插件晶振,3.0*8.0mm晶振,頻率32.768KHz,負載12.5pF,頻率容差20ppm,工作溫度-10~60°C,低成本晶振,抗沖擊晶振,無鉛環保晶振,無線路由...
-

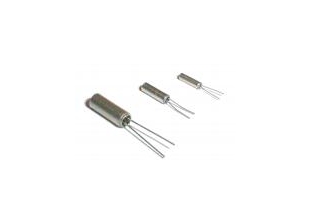

WXC38-32K768-12.5|32.768KHz|12.5pF|Fortiming晶體
WXC38-32K768-12.5|32.768KHz|12.5pF|Fortiming晶體,Fortiming晶振,WXC38無源晶振,音叉晶體,WXC38-32K768-12.5晶振,石英晶體諧振器,圓柱插件晶振,3.0*8.0mm晶振,頻率32.768KHz,負載12.5pF,頻率容差20ppm,工作溫度-10~60°C,低成本晶振,抗沖擊晶振,無鉛環保晶振,無線路由器晶振,時鐘鐘表晶振,微處理器晶振,通訊設備晶振.
WXC38-32K768-12.5|32.768KHz|12.5pF|Fortiming晶體特點：
-符合RoHS標準(無鉛)，設計的CPU時間時鐘
-小型緊湊型冷焊鋁支架
-具有經濟成本的性能
-優異的抗沖擊和環境特性
-符合RoHS標準(無鉛)，設計的CPU時間時鐘
-小型緊湊型冷焊鋁支架
-具有經濟成本的性能
-優異的抗沖擊和環境特性
WXC38-32K768-12.5|32.768KHz|12.5pF|Fortiming晶體規格表
| frequency | 32.768 KHz |
|
Calibration Tolerance @25°C
|
±20 ppm
|
|
Frequency Stability Ref @25°C
|
Frequency shift at T°C in ppm = -0.035 x (T-25) ± 10% (ppm) |
|
Temperature Range
|
-10°C to 60°C
|
|
Crystal Aging
|
±3 ppm / year Maximum
|
| storage temperature range | -55°C~+125℃ |
| load capacitance (CL) | 12.5 pF |
| shunt capacitance | 1.6 pF Typical |
|
Drive Level
|
0.001 mW Maximum
|
|
Equivalent Series Resistance
|
40 kOhms Maximum
|
.jpg)
WXC38-32K768-12.5|32.768KHz|12.5pF|Fortiming晶體尺寸圖
