Renesas瑞薩晶振
-
SKYWORKS晶振
- 產品型號：29561581
- 晶振頻率：32.768KHz
- 晶振尺寸：3.2*1.5*0.85mm
- 產品應用： AEL進口環保晶振,ELS07高精度音叉晶振,ELS07-32.768kHz-6-T物聯網終端晶振，美國AEL晶振公司，音叉晶振，貼片晶振，二腳晶振，超小型晶振，ELS07晶振，ELS07-32.768kHz-6-T晶振，3215晶振，環保無鉛晶振，高穩定性晶振...
-

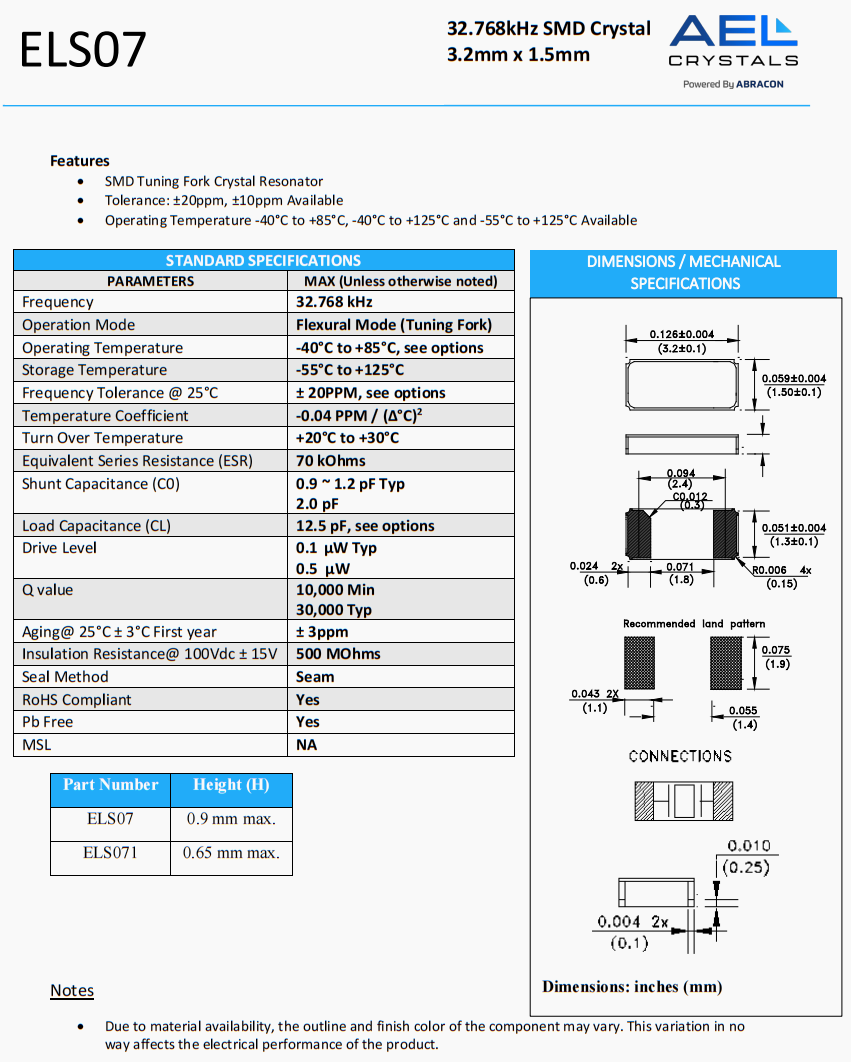

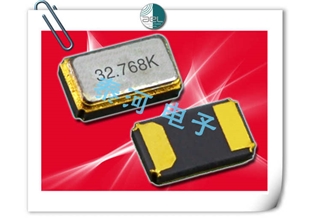

AEL進口環保晶振,ELS07高精度音叉晶振,ELS07-32.768kHz-6-T物聯網終端晶振
AEL進口環保晶振,ELS07高精度音叉晶振,ELS07-32.768kHz-6-T物聯網終端晶振，美國AEL晶振公司，音叉晶振，貼片晶振，二腳晶振，超小型晶振，ELS07晶振，ELS07-32.768kHz-6-T晶振，3215晶振，環保無鉛晶振，高穩定性晶振，石英晶振，二腳晶振，超小型晶振，歐美晶振，音叉晶振，特點:SMD音叉晶體諧振器，公差:±20ppm，±10ppm可用，工作溫度-40°C至+85°C， -40°C至+125°C和-55°C至+125°C可用,符合RoHS標準(無鉛)，低外形通孔封裝，at切割晶體，優異的老化，非常緊密的溫度穩定性，行業標準引線間距。
AEL進口環保晶振,ELS07高精度音叉晶振,ELS07-32.768kHz-6-T物聯網終端晶振
| 參數 | MAX (Unless otherwise noted) |
| 頻率 | 32.768 kHz |
| 工作模式 | Flexural Mode (Tuning Fork) |
| 工作溫度 | -40°C to +85°C, see options |
| 儲存溫度 | -55°C to +125°C |
| 頻率容差 | ± 20PPM, see options |
| 溫度系數 | -0.04 PPM / (?°C)2 |
| 翻轉溫度 | +20°C to +30°C |
|
等效串聯電阻 (ESR) -40 ~ +85°C -40 ~ +125°C 和 -55 ~ +125°C |
90 kOhms 110 kOhms |
| 負載電容 | 12.5 pF, see options |
| 分流電容 | 0.9 ~ 1.2 pF Typ 2.0 pF |
| 驅動電平 | 0.1 μW Typ0.5 μW |
| Q值 | 9,000 Min |
| 老化 | ± 3ppm |
| 絕緣電阻 | 500 MOhms |
| 密封方式 | Seam |
| 符合ROHS | Yes |
| 無鉛 | Yes |
| MSL | NA |
.jpg)

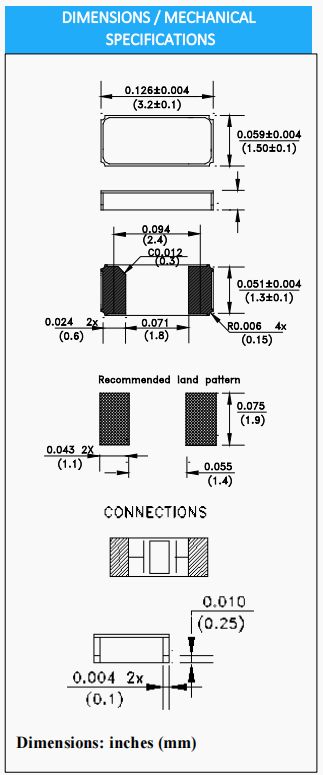

AEL進口環保晶振,ELS07高精度音叉晶振,ELS07-32.768kHz-6-T物聯網終端晶振
| 編碼 | 品牌 | 型號 | 頻率 | 頻率穩定度 | 頻率容差 | 負載電容 |
| ELLS-10.000MHz-20-R60-J-Q-F-T | AEL Crystals | ELLS | 10 MHz | ±100ppm | ±50ppm | 20 pF |
| ELLS-12.000MHz-18-R60-A-4-F-T | AEL Crystals | ELLS | 12 MHz | ±50ppm | ±30ppm | 18 pF |
| ELLS-13.560MHz-10-R35-A4Y-F-T | AEL Crystals | ELLS | 13.56 MHz | ±30ppm | ±30ppm | 10 pF |
| ELLS-30.000MHz-10-R50-B1U-F-T | AEL Crystals | ELLS | 30 MHz | ±10ppm | ±10ppm | 10 pF |
| ELLS-4.000MHz-16-R120-A4-F-T | AEL Crystals | ELLS | 4 MHz | ±50ppm | ±30ppm | 16 pF |
| ELLS-4.000MHz-16-R120-B1X-F-T | AEL Crystals | ELLS | 4 MHz | ±20ppm | ±10ppm | 16 pF |
| ELLS-4.000MHz-30-R120-D4-F-T | AEL Crystals | ELLS | 4 MHz | ±50ppm | ±30ppm | 30 pF |
| ELLS-8.000MHz-16-R45-D4-F-T | AEL Crystals | ELLS | 8 MHz | ±50ppm | ±30ppm | 16 pF |
| ELM10-16.000MHz-8-R60-2-D20-T | AEL Crystals | ELM10 | 16 MHz | ±20ppm | ±20ppm | 8 pF |
| ELM10-24.000MHz-16-R100-X-N15-T | AEL Crystals | ELM10 | 24 MHz | ±15ppm | ±10ppm | 16 pF |
| ELM11-32.000MHz-10-R60-D1X-T | AEL Crystals | ELM11 | 32 MHz | ±20ppm | ±10ppm | 10 pF |
| ELM12W-24.000MHz-6-R120-D7X-T | AEL Crystals | ELM12W | 24 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM3-12.000MHz-30-R80-D4Y-T | AEL Crystals | ELM3 | 12 MHz | ±30ppm | ±30ppm | 30 pF |
| ELM3-14.000MHz-30-R80-D4H-T | AEL Crystals | ELM3 | 14 MHz | ±50ppm | ±50ppm | 30 pF |
| ELM3-24.000MHz-18-R40-D4H-T | AEL Crystals | ELM3 | 24 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-8.057MHz-18-R100-B4Y-T | AEL Crystals | ELM3 | 8.057 MHz | ±30ppm | ±30ppm | 18 pF |
| ELM8-12.000MHz-10-R50-D4Y-T | AEL Crystals | ELM8 | 12 MHz | ±30ppm | ±30ppm | 10 pF |
| ELM8-12.5829MHz-16-R60-1U-T | AEL Crystals | ELM8 | 12.5829 MHz | ±10ppm | ±10ppm | 16 pF |
| ELM8-14.000MHz-16-R150-B1U-T | AEL Crystals | ELM8 | 14.8 MHz | ±10ppm | ±10ppm | 16 pF |
| ELM8-18.432MHz-16-R80-DQ-T | AEL Crystals | ELM8 | 18.432 MHz | ±100ppm | ±100ppm | 16 pF |
| ELM8-24.000MHz-10-R60-D1W-T | AEL Crystals | ELM8 | 24 MHz | ±25ppm | ±10ppm | 10 pF |
| ELM8-24.000MHz-18-R60-B1W-T | AEL Crystals | ELM8 | 24 MHz | ±10ppm | ±10ppm | 18 pF |
| ELM8-24.000MHz-9-R40-N1U-T | AEL Crystals | ELM8 | 24 MHz | ±10ppm | ±10ppm | 9 pF |
| ELM8-26.000MHz-18-R60-B1U-T | AEL Crystals | ELM8 | 26 MHz | ±10ppm | ±10ppm | 18 pF |
| ELM8-32.000MHz-16-R40-B1U-T | AEL Crystals | ELM8 | 32 MHz | ±10ppm | ±10ppm | 16 pF |
| ELM8-32.000MHz-9-R40-D1G-T | AEL Crystals | ELM8 | 32 MHz | ±15ppm | ±10ppm | 9 pF |
| ELS05-32.768kHz-9-T | AEL Crystals | ELS05 | 32.768 kHz | ±20ppm | 9 pF | |
| ELS06-32.768kHz-9-T | AEL Crystals | ELS06 | 32.768 kHz | ±20ppm | 9 pF | |
| ELS07-32.768kHz-6-T | AEL Crystals | ELS07 | 32.768 kHz | 0 | ±20ppm | 6 pF |
| ELS07-32.768kHz-T | AEL Crystals | ELS07 | 32.768 kHz | 0 | ±20ppm | 12.5 pF |
| ELS13-32.768kHz-7-T | AEL Crystals | ELS13 | 32.768 kHz | 0 | ±20ppm | 7 pF |
| ELS13-32.768kHz-7-T | AEL Crystals | ELS13 | 32.768 kHz | 0 | ±20ppm | 7 pF |
| ELS13-32.768kHz-9-T | AEL Crystals | ELS13 | 32.768 kHz | ±-0.034ppm | ±20ppm | 9 pF |
| ELS13-32.768kHz-T | AEL Crystals | ELS13 | 32.768 kHz | 0 | ±20ppm | 12.5 pF |
| ELS13-32.768kHz-T | AEL Crystals | ELS13 | 32.768 kHz | 0 | ±20ppm | 12.5 pF |
| ELS25-32.768kHz-6-2-T | AEL Crystals | ELS25 | 32.768 kHz | ±0.035ppm | ±20ppm | 6 pF |
| ELS25-32.768kHz-T | AEL Crystals | ELS25 | 32.768 kHz | 0 | ±20ppm | 12.5 pF |
| ELS25-32.768kHz-T | AEL Crystals | ELS25 | 32.768 kHz | 0 | ±20ppm | 12.5 pF |
