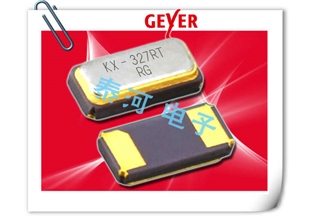

歐美晶振
- 產品型號：22374181
- 晶振頻率：32.768KHz
- 晶振尺寸：3.2*1.5*0.9mm
- 產品應用： Geyer晶振,進口晶振,KX-327NHT無源晶振,12.87146晶振,石英晶體諧振器,3215mm晶振,二腳貼片晶振,SMD晶體,頻率32.768KHz,負載9.0pF,頻率容差10ppm,工作溫度-40~85°C,小體積晶振,高精度晶振,高品質晶振,智能手表晶振,計...
-
12.87146|32.768KHz|9.0pF|Geyer進口晶振
12.87146|32.768KHz|9.0pF|Geyer進口晶振,Geyer晶振,進口晶振,KX-327NHT無源晶振,12.87146晶振,石英晶體諧振器,3215mm晶振,二腳貼片晶振,SMD晶體,頻率32.768KHz,負載9.0pF,頻率容差10ppm,工作溫度-40~85°C,小體積晶振,高精度晶振,高品質晶振,智能手表晶振,計時器晶振,時鐘源應用晶振,隨身聽晶振.
12.87146|32.768KHz|9.0pF|Geyer進口晶振規格表
| part no. | 12.87146 |
| model | KX-327NHT |
| frequency | 32.768 kHz |
| operating temperature | -40~+85℃ |
| frequency tolerance(df/F) at +25°C ±3°C | 土10ppm |
| temperature tolerance (parabolic coefficient) |
( -0.035 ±10 % ) × 10-6 / ℃2
|
| turnover temperature | +25°C±5℃ |
| storage temperature range | -55°C~+125℃ |
| load capacitance CL | 9.0pF |
| motional capacitance (C1) Typ. | 3.6fF |
| shunt capacitance C0 typ. | 1.0 pF |
| series resistance R1 (ESR) max. | 70 KOhm |
| aging at +25°℃ (first year) max. | ±3 ppm |
| drive level | 1 μW max. |
| contents of reel | 3000 pcs. |
.jpg)
12.87146|32.768KHz|9.0pF|Geyer進口晶振尺寸圖
