歐美晶振
- 產品型號：51743858
- 晶振頻率：14.7456MHz
- 晶振尺寸：
- 產品應用： 丹麥格耶晶振,GEYER晶體,KX-49無源晶振,插件晶振,12.81328晶振,石英晶體諧振器,HC-49/U晶振,二腳封裝晶振,11.3*4.9*13.6mm晶振,頻率14.7456MHz,負載30pF,頻率容差30ppm,工作溫度-20~70°C,高穩定性晶振,抗沖擊晶振,低...
-
12.81328|14.7456MHz|30pF|丹麥格耶晶振
12.81328|14.7456MHz|30pF|丹麥格耶晶振,丹麥格耶晶振,Geyer晶振,KX-49無源晶振,插件晶振,12.81328晶振,石英晶體諧振器,HC-49/U晶振,二腳封裝晶振,11.3*4.9*13.6mm晶振,頻率14.7456MHz,負載30pF,頻率容差30ppm,工作溫度-20~70°C,高穩定性晶振,抗沖擊晶振,低老化晶振,智能體溫計晶振,攝像頭晶振,網絡終端晶振,錄音筆晶振.
12.81328|14.7456MHz|30pF|丹麥格耶晶振規格表
| part no. | 12.81328 |
| model | KX-49 |
| frequency range | 14.7456 MHz |
|
mode |
fundamental |
| operating temperature | -20~+70℃ |
| frequency tolerance at +25°C | 土30 ppm |
| temperature tolerance |
土50 ppm
|
| storage temperature range | -55°C~+125℃ |
| load capacitance CL | 30 pF |
| shunt capacitance C0 max. | 7 pF |
| series resistance R1 (ESR) max. | 200 Ohm |
| aging at +25°℃ (first year) max. | ±5 ppm |
| drive level | 0.5 ~ 2 mW typ |
.jpg)

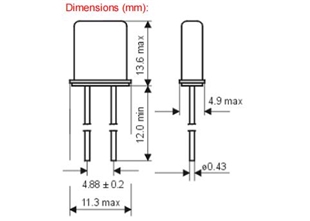

12.81328|14.7456MHz|30pF|丹麥格耶晶振尺寸圖
