- 產品型號：92726125
- 晶振頻率：114.285MHz
- 晶振尺寸：3.2*2.5*0.9mm
- 產品應用： GEYER晶振,KX-7T進口晶振,無源晶振,12.60419晶振,石英晶體諧振器,3225貼片晶振,四腳封裝晶振,SMD晶體,頻率114.285MHz,負載18pF,頻率容差20ppm,工作溫度-40~85°C,小體積晶振,高精度晶振,無鉛環保晶振,筆記本電腦晶振,...
-

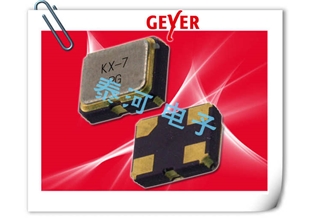

12.60419|114.2850MHz|18pF|GEYER晶振
12.60419|114.2850MHz|18pF|GEYER晶振,GEYER晶振,KX-7T進口晶振,無源晶振,12.60419晶振,石英晶體諧振器,3225貼片晶振,四腳封裝晶振,SMD晶體,頻率114.285MHz,負載18pF,頻率容差20ppm,工作溫度-40~85°C,小體積晶振,高精度晶振,無鉛環保晶振,筆記本電腦晶振,智能手機晶振,消費電子產品晶振,網絡終端晶振.
12.60419|114.2850MHz|18pF|GEYER晶振規格表
| part no. | 12.60419 |
| model | KX-7T |
| frequency range | 114.285MHz |
|
mode |
fundamental |
| operating temperature | -40~+85℃ |
| frequency tolerance at +25°C | 土20 ppm |
| temperature tolerance |
土20 ppm
|
| storage temperature range | -55°C~+125℃ |
| load capacitance CL | 18 pF |
| shunt capacitance C0 typ. | 3.0 pF |
| series resistance R1 (ESR) max. | 60 Ohm |
| aging at +25°℃ (first year) max. | ±2 ppm |
| drive level | 200 μW max. |
| contents of reel | 1000 pcs. |
.jpg)
12.60419|114.2850MHz|18pF|GEYER晶振尺寸圖
.jpg)
