- 產品型號：35481870
- 晶振頻率：16.384MHz
- 晶振尺寸：3.2*2.5*0.9mm
- 產品應用： 歐美進口晶振,GEYER晶振,KX-7無源晶振,12.60168晶振,石英晶體諧振器,四腳貼片晶振,3225mm晶振,SMD晶體,頻率16.384MHz,負載12pF,頻率容差30ppm,工作溫度-20~70°C,小體積晶振,高可靠性晶振,無鉛環保晶振,尋呼機晶振,移...
-
12.60168|16.384MHz|12pF|GEYER貼片晶振
12.60168|16.384MHz|12pF|GEYER貼片晶振,歐美進口晶振,GEYER晶振,KX-7無源晶振,12.60168晶振,石英晶體諧振器,四腳貼片晶振,3225mm晶振,SMD晶體,頻率16.384MHz,負載12pF,頻率容差30ppm,工作溫度-20~70°C,小體積晶振,高可靠性晶振,無鉛環保晶振,尋呼機晶振,移動電話晶振,筆記本電腦晶振,電信交換機晶振.

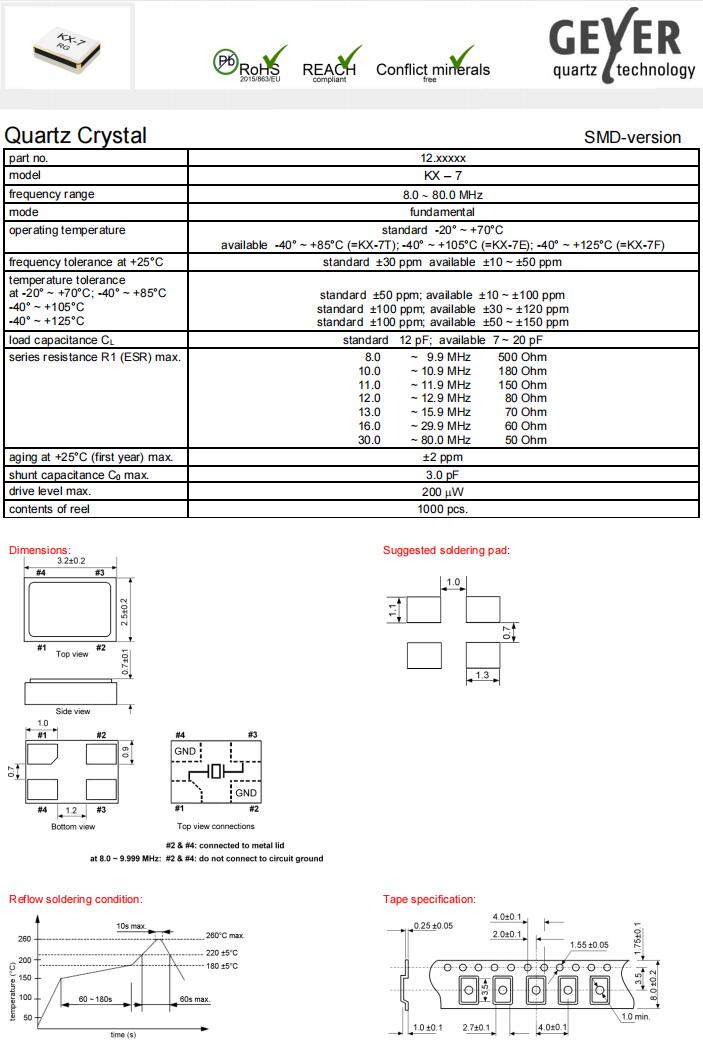

12.60168|16.384MHz|12pF|GEYER貼片晶振規格表
| part no. | 12.60168 |
| model | KX-7 |
| frequency range | 16.384 MHz |
|
mode |
fundamental |
| operating temperature | -20~+70℃ |
| frequency tolerance at +25°C | 土30 ppm |
| temperature tolerance |
土50 ppm
|
| storage temperature range | -55°C~+125℃ |
| load capacitance CL | 12 pF |
| shunt capacitance C0 typ. | 3.0 pF |
| series resistance R1 (ESR) max. | 60 Ohm |
| aging at +25°℃ (first year) max. | ±2 ppm |
| drive level | 200 μW max. |
| contents of reel | 1000 pcs. |
.jpg)

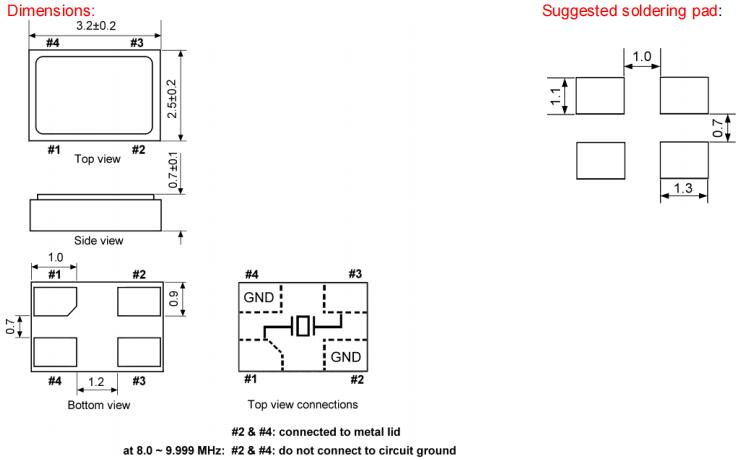

12.60168|16.384MHz|12pF|GEYER貼片晶振尺寸圖
.jpg)
